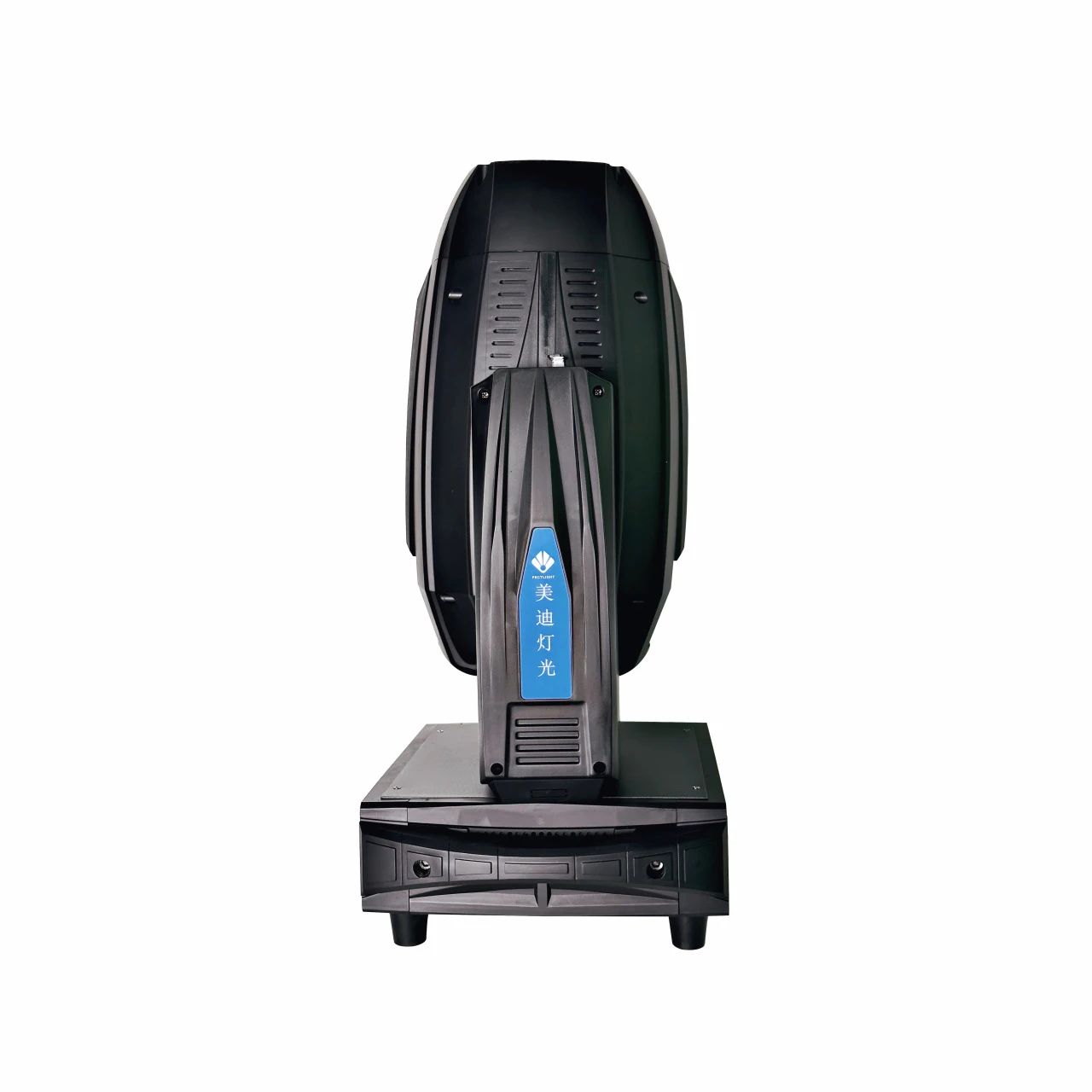

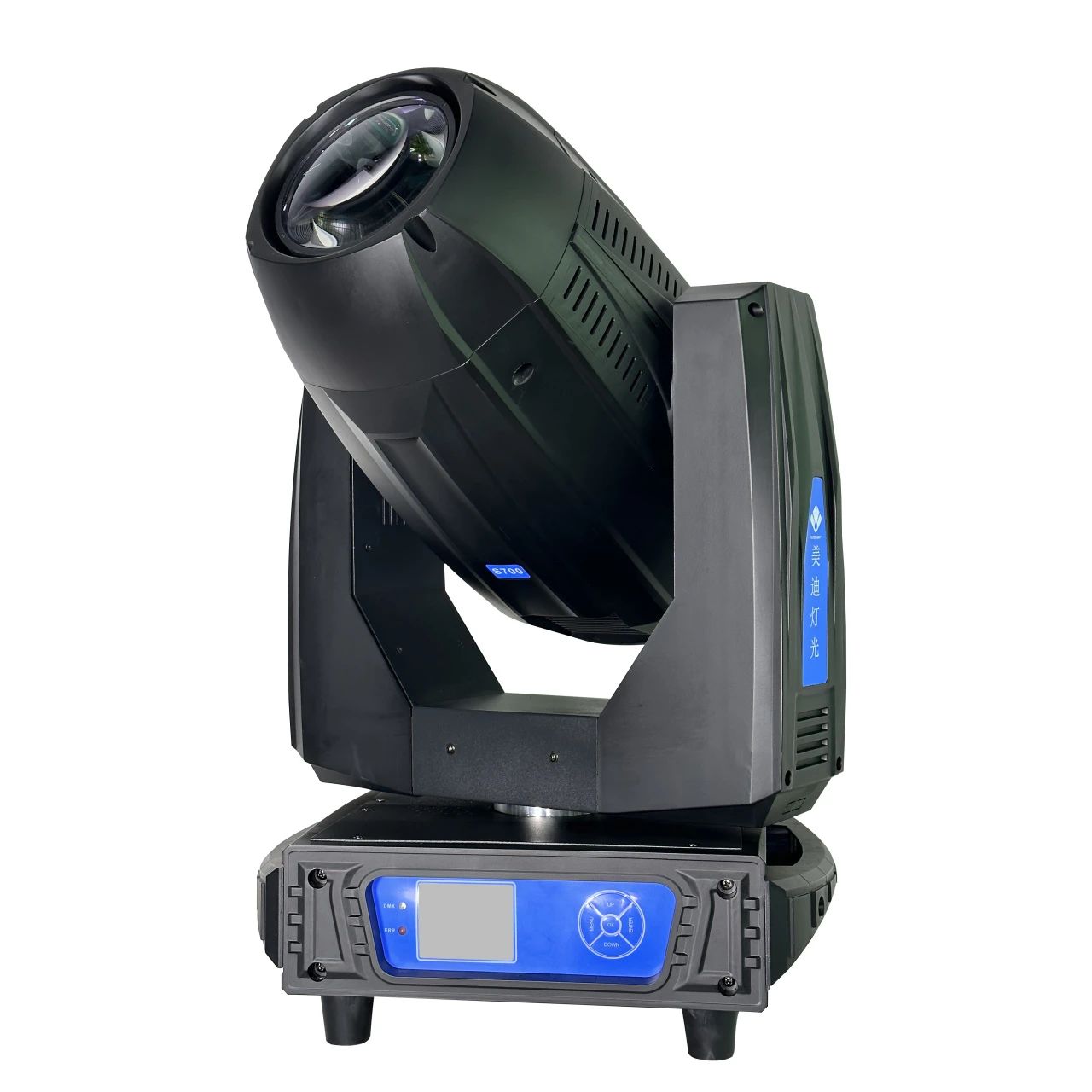

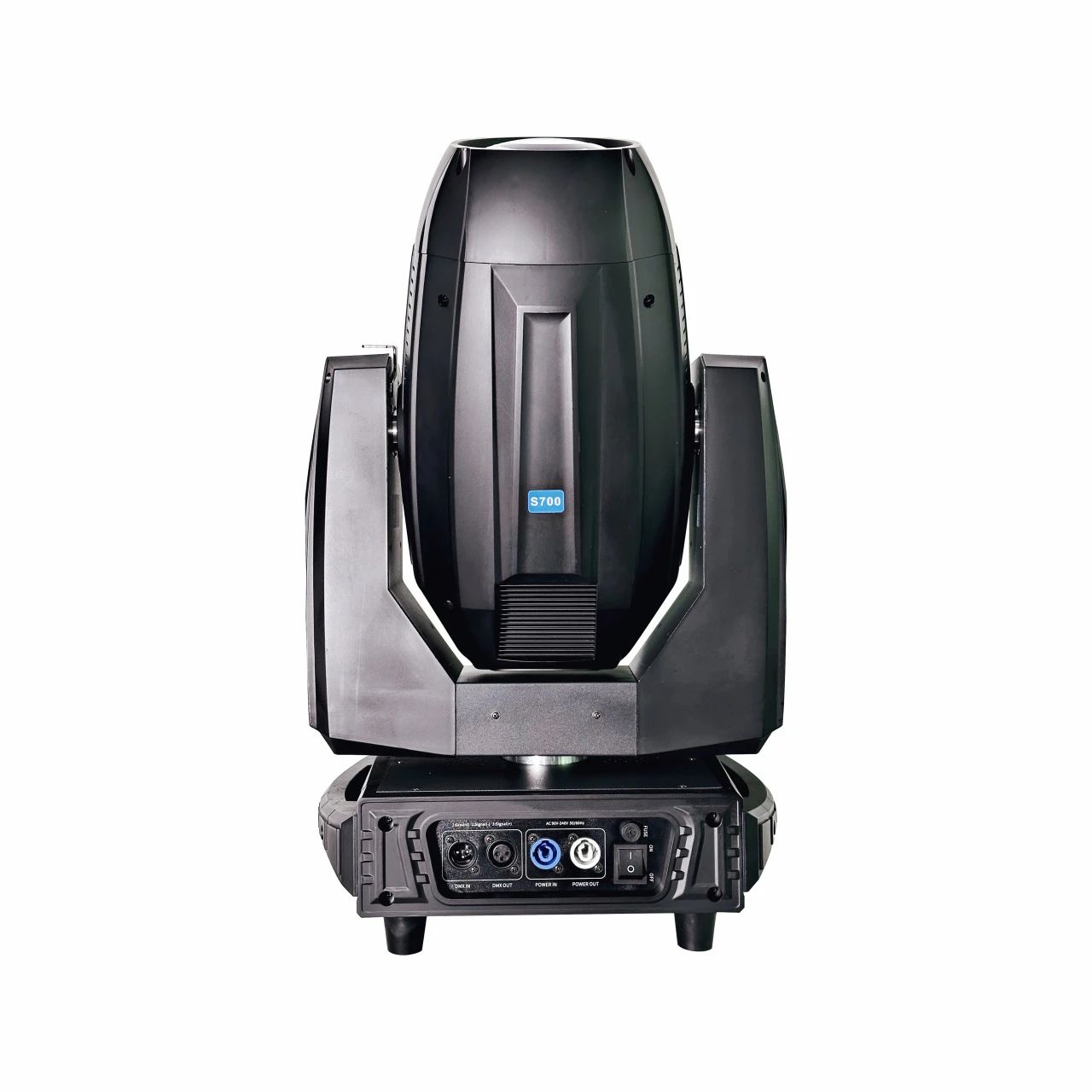

461 W Triple belt CMY pattern light S700

461W triple belt CMY pattern light -S700, using the original OSRAM SIRIUS 461W light source; LCD touch screen + key control, Chinese and English switching, screen rotation function; 24 international standard DMX channels; Double stroboscopic, double prism; 1 color tray, 1 rotating pattern tray, 1 fixed pattern tray, 1 effect tray with 4 effect patterns (including flame effects) +1 water pattern renderings, plus 3 Cyan, rose Magenta, Yellow color trays. Built-in RDM function, intelligent fan spee

Product parameters:

● Rated voltage: AC100V~240V±10%, 50-60Hz

● Power supply: 700W

● Light source: OSRAM SIRIUS 461W

● Color temperature :7500K

● Lamp life: 1500 hours lamp

● Control mode: DMX, self-walking, master-slave, voice control

● DMX channels: 24 international standard DMX channels

● Control mode: DMX, self-walking, master-slave, voice control

● Signal input: standard three-core/five-core signal socket input and output

● Three-in-one optical lens design: (BEAM mode) : 2° ~ 15°; (SPOT pattern mode) : 5° ~ 50°; (WASH dyeing mode) : 8° ~ 52° Three modes can be arbitrarily switched to achieve the three-for-one function of light beam, dyeing and pattern.

● Stroboscopic: two-piece stroboscopic, stroboscopic speed 0.5 ~ 9 times/second

● Color tray: 1 color tray, 13 colors + white light, can be half color, two-way flow, color conversion and half color rainbow effect.

● CMY plate: 3; Cyan, Magenta, Yellow; Multiple color plates are superimposed to present a linear color mixing system from light to dark, color mixing, color switching, etc.

●1 rotating pattern plate, with 7 pattern pieces + white light can achieve rotation, water, shaking effect, pattern wheel can be positioned.

●1 fixed pattern plate with 14 fixed patterns + white light.

●1 effect tray with 4 effect patterns (including flame effect) +1 water effect map.

● Double prism effect: 2 independent rotating prisms, octa prism +16 edge combination, double prisms can be combined with each other superposition or separate rotation changes, fixed and rotation mode combination, can produce a strange special multi-beam effect.

● Prism focusing: Prism can be linear focusing amplification and reduction, clarity can be adjusted.

● Focusing: Using high-precision glass optical lens, electronic focusing design, ultra-smooth adjustment of focal length.

● Atomization: 0% ~ 100% uniform soft light atomization effect

Horizontal scanning: X axis: 540°, 16Bit,

● Vertical scanning: Y-axis: 270°, 16Bit,

● Display: LCD LCD display, touch screen + key control, the operation process is more humane and convenient, built-in Chinese and English display interface switch, intelligent 180 degrees flip upside down.

● Appearance material: high temperature and fire resistant engineering plastic injection molding.

● Product size: 390 L x290 W x 660 H mm

● Packing size: 630x540x 500mm
