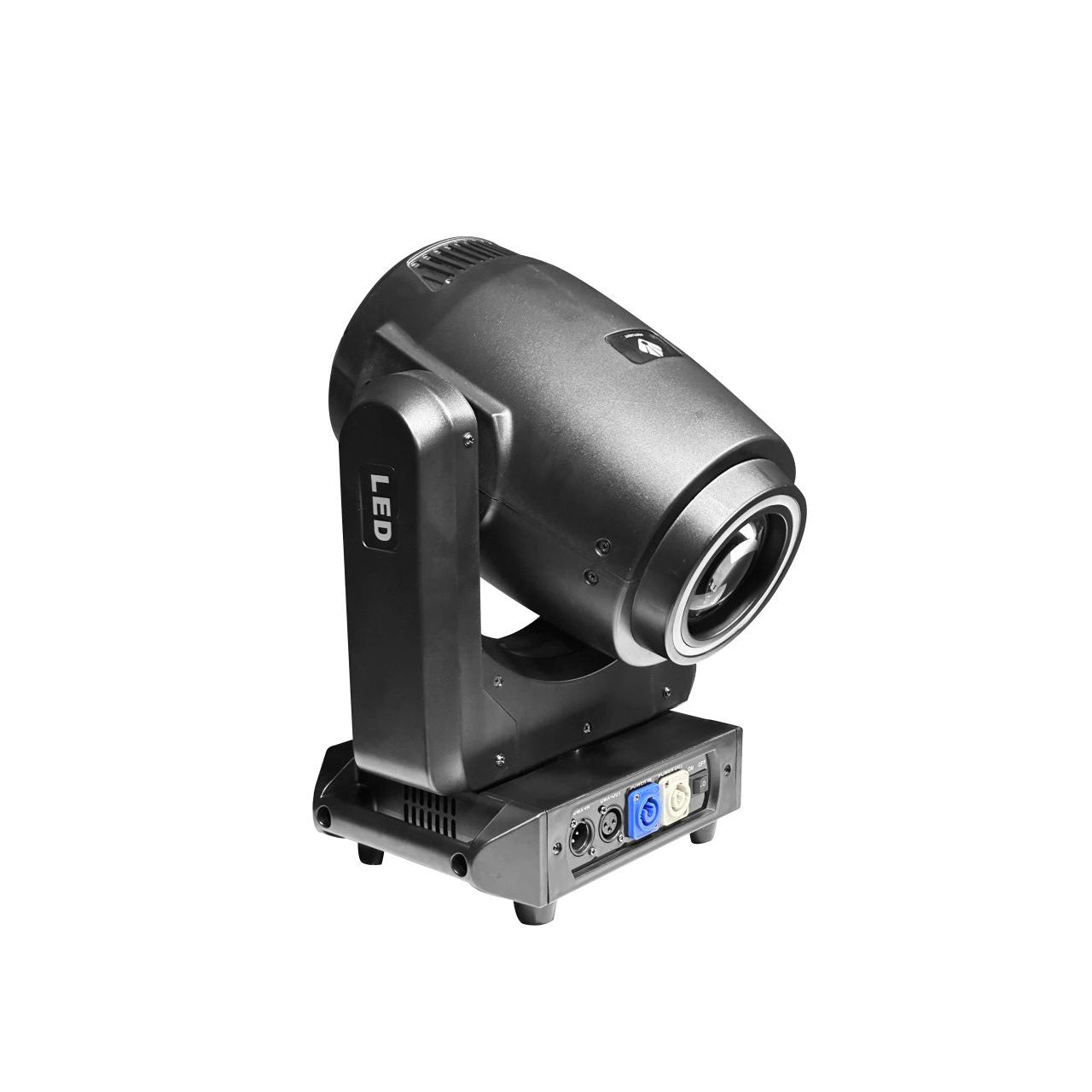

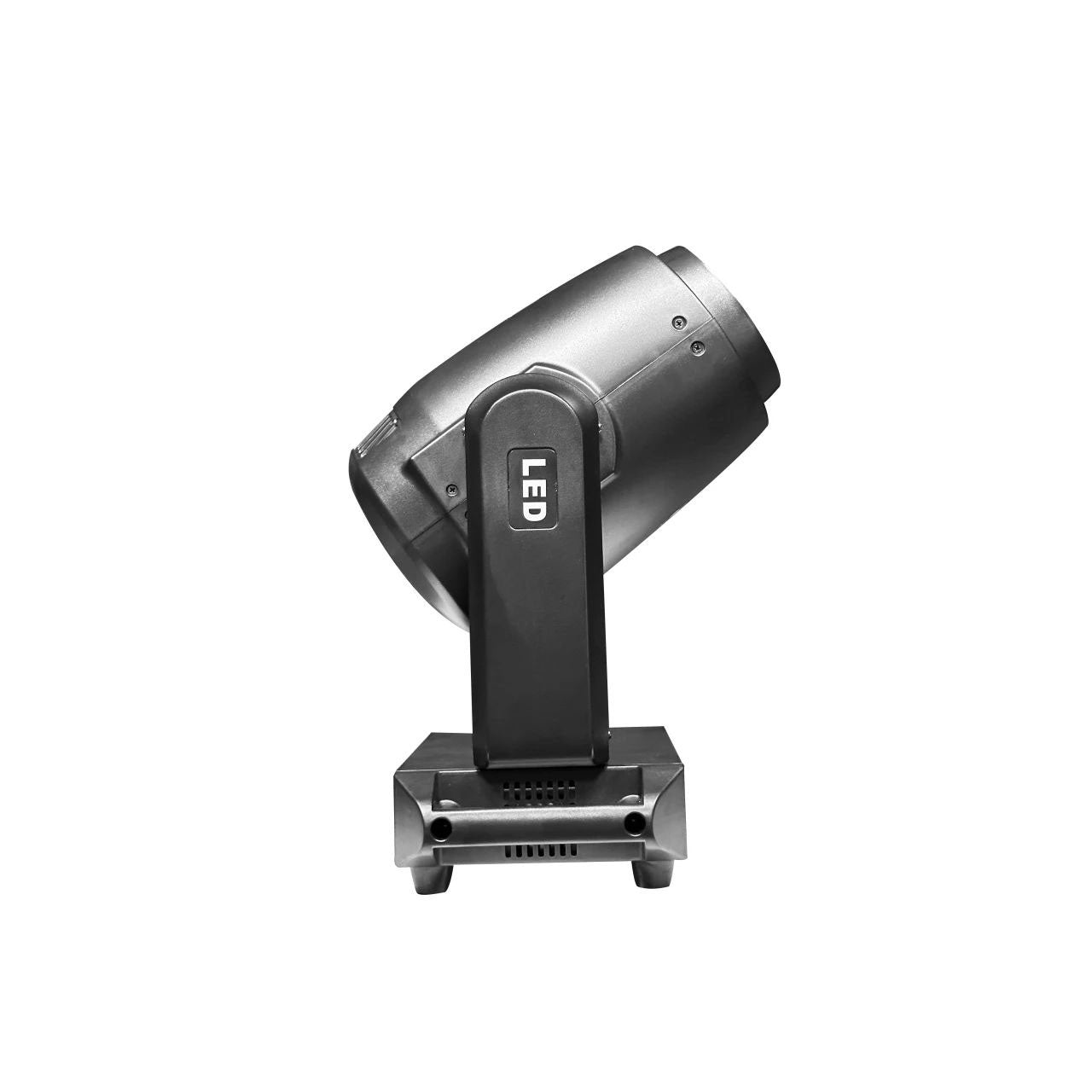

LED 150W three-in-one pattern light LEDSPOT150

LED SPOT150, LED150W 3-in-1 pattern light, lamp head with auxiliary LED strip effect); The light source uses LED module 150W white light +28 LED high-brightness triplet lamp beads; 1.77 inch LCD display, Chinese and English bilingual menu, sensor fault display, temperature display; Small size, with light beam, pattern, dyeing three-in-one function, suitable for clean bar, music bar, banquet hall and other small entertainment places.

LED SPOT150

LED150W 3-in-1 pattern light

(Lamp holder with auxiliary LED strip effect)

Product parameter

Voltage: AC100V ~ 240V 50/60Hz

Light source: LED module 150W white light

Power supply: 300W

Rated life: 20000 hours, color temperature: 9000K

LED lamp ring: 28 LED high-brightness triplet lamp beads, built-in a variety of horse riding effect program, can be separated from the console master and slave synchronous operation

Beam Angle: Zoom 0° ~ 5°, 128mm large aperture light, beam Angle 0-2.2 degrees

Color: with macro command function Color disk: 12 colors + white full color/half color/linear color variable speed two-way rainbow effect, built-in efficient hall device

Pattern: 1 fixed pattern plate: 13 kinds of patterns + white light, two-way variable speed rotation, with variable speed jitter effect, two-way variable speed flow effect, built-in efficient hall device

Rotating chart: 7 patterns + white light

Prism: 1 quadrilateral prism

Focus: DMX linear focus with auto focus function

Atomization: 1 atomizing mirror

Electronic stroboscopic, 0.3 ~ 25 times/SEC, synchronous or asynchronous random stroboscopic

Dimming: electronic dimming 0 ~ 100% linear adjustment, with gamma curve dimming frequency 1.2K ~ 25K adjustable, with macro command dimming linear stable smooth no flicker, using stable constant current drive and power supply, suitable for video shooting

Rotation Angle: horizontal direction 540° (16 bit precision scan), vertical direction 270° (16 bit precision scan) XY axis is driven by high-speed silent motor, which makes the operation faster and smoother, and can automatically return to the position after misoperation, and the horizontal and vertical speed can be adjusted; XY axis rotation function and inverse function; Photoelectric high-precision positioning

Control mode: 21CH (standard); 1 channel control mode, standard DMX512 protocol, RDM protocol

Control interface: DMX512 interface (3-core / 5-core optional), power cord hand-in-hand socket

Sleep function: The use of advanced technology to achieve remote sleep function, when the lamp disconnected signal automatically enter the sleep state, making the lamp more stable and safer

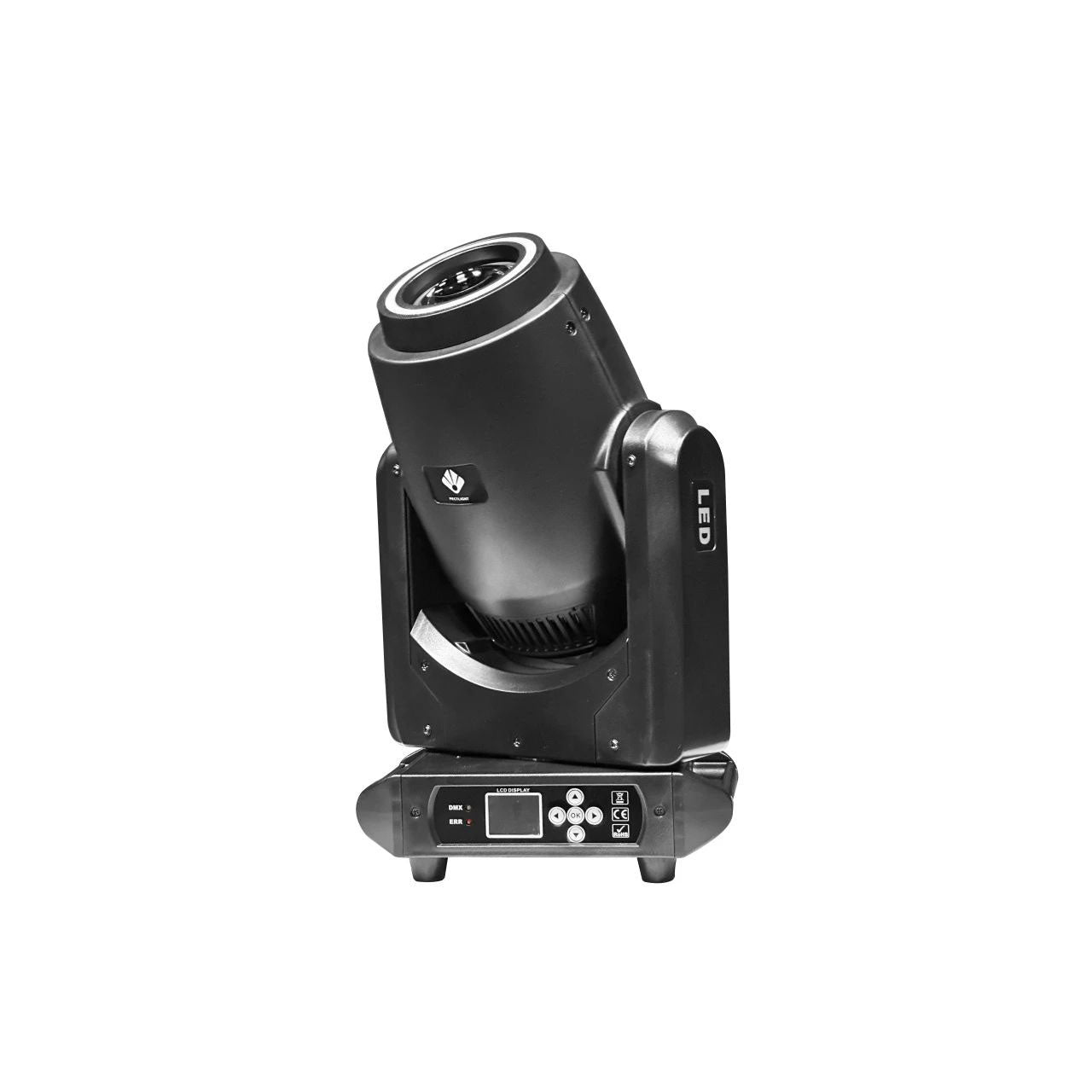

Display functions: 1.77 inch LCD screen, bilingual menu in Chinese and English, sensor fault display, temperature display

Cooling system: Light aluminum radiator, fan intelligent monitoring technology

The fan speed is automatically adjusted according to the lamp temperature, and the intelligent system for overheat protection/intelligent temperature and noise balance module is built in

Protection level: IP20, optional rain cover protection level up to IP44

Luminaire packing: waterproof and shock-proof airbox or carton

Product size: 28*19*46CM (length, width and height), including lamp head height 30CM

Product weight: 9.25kg
