Pinnacle PR7 Body Camera

• The Latest Pinnacle Body Camera
• Records in up to 1440p
• 3 Selectable Models
• Up to 12 Hours of Continuous Recording
• AES256 Encryption with Full ENC model
• 140° Lens Angle
• Full Charge within 4 Hours
• 64GB Storage
• H.264/H.265 Encoding
• KlickFast Compatible
• 100+ Hours of Standby
• Night-vision Capabilities
• Pre-Record
• Cloud Based DEMS Software Upgrade available
• IP66 Rating
• Highly Robust
• Anti-Tamper Design
• Includes clips, lanyard, dock, cable and charger

For the Cloud Based DEMS integrated Full ENC version of this camera, please call us on 01722 444 806 and we can give you more information on how to purchase it.



The Latest Pinnacle Body Camera
The Pinnacle PR7 Body Camera is the latest update in the Pinnacle Response range, replacing the popular PR6 after many years. The PR7 is of similar dimensions to the PR6 at 9.2 x 6 x 2.5cm and 165g but with upgraded hardware and more storage capacity.


3 Selectable Models
There are 3 models of this Pinnacle Body Camera available, the Lite, PPS and Full ENC. The PR7 Lite model is essentially a plug and play camera that acts like a USB without encryption or password protection. The PPS model uses a cam manager software to unlock it and has password protection. The Full ENC model includes AES256 encryption and is integrated into the Pinnacle Cloud DEMS. The Full ENC model can’t be bought online and must be done directly by calling 01722 444 806.


Records in up to 1440p
The Pinnacle PR7 Body Camera has the ability to record in both 1440p and 1080p with 1080 being the default. Both recording resolutions are at 30 frames per second. It also records decent audio.


Up to 12 Hours of Continuous Recording
This Pinnacle body camera delivers up to 150 hours of standby with up to 12 hours of continuous recording. This is dependent on settings and resolution with 12 hours being at 1080p. Pre-Record will also affect battery life. It can be fully charged in 4 hours of being docked.


Large Amount of Storage
The Pinnacle PR7 Body Camera can store a large amount of footage at any given time. It has 64GB storage and uses either H.264 or H.265 encoding allowing it to stretch the storage further than its predecessor.


KlickFast Compatible
This Pinnacle body camera comes with a rotatable KlickFast stud that allows you to adjust the angle of the camera by moving it along the ball of the clip. It will fit all official Peter Jones KlickFast harnesses and docks.


30 Second Pre-Record
The Pinnacle PR7 Body Camera is continuously recording and storing footage in its buffer. When record is pressed then that buffer is added to the subsequent footage allowing the user to capture the lead up to an incident rather than just the aftermath. The pre-record default is 30 seconds.


Night-Vision Capabilities
The Pinnacle PR7 Body Camera has built in infra-red functionality that will automatically enable when light levels drop. When this happens, recording will switch from normal colour into greyscale and can record footage in down to 0.20 lux.


Highly Robust
The Pinnacle PR7 Body Worn Camera is a highly robust device that has been drop tested to 3 metres and carries an ingress protection rating of IP67. Housed in a durable ABS case, the PR7 can withstand the wear and tear of life on the beat.


Tamper Resistant Design
This Pinnacle body camera has been designed to reduce the amount of external tampering that can occur with the device to prevent its proper function. All of its components are non-removeable and tightly sealed within the ABS case. Neither the storage nor the battery can be accessed without breaking its seal and effectively disabling the device. There is no way to disable it without the user knowing.


Cloud Based DEMS Software Upgrade available
The PPS model of the Pinnacle PR7 body camera can be upgraded to a Full ENC model at a later date. This will allow it to integrate with Pinnacle’s cloud based DEMS software. License and upgrade costs are separate and can be discussed by calling 01722 444 806.


What’s in the box?

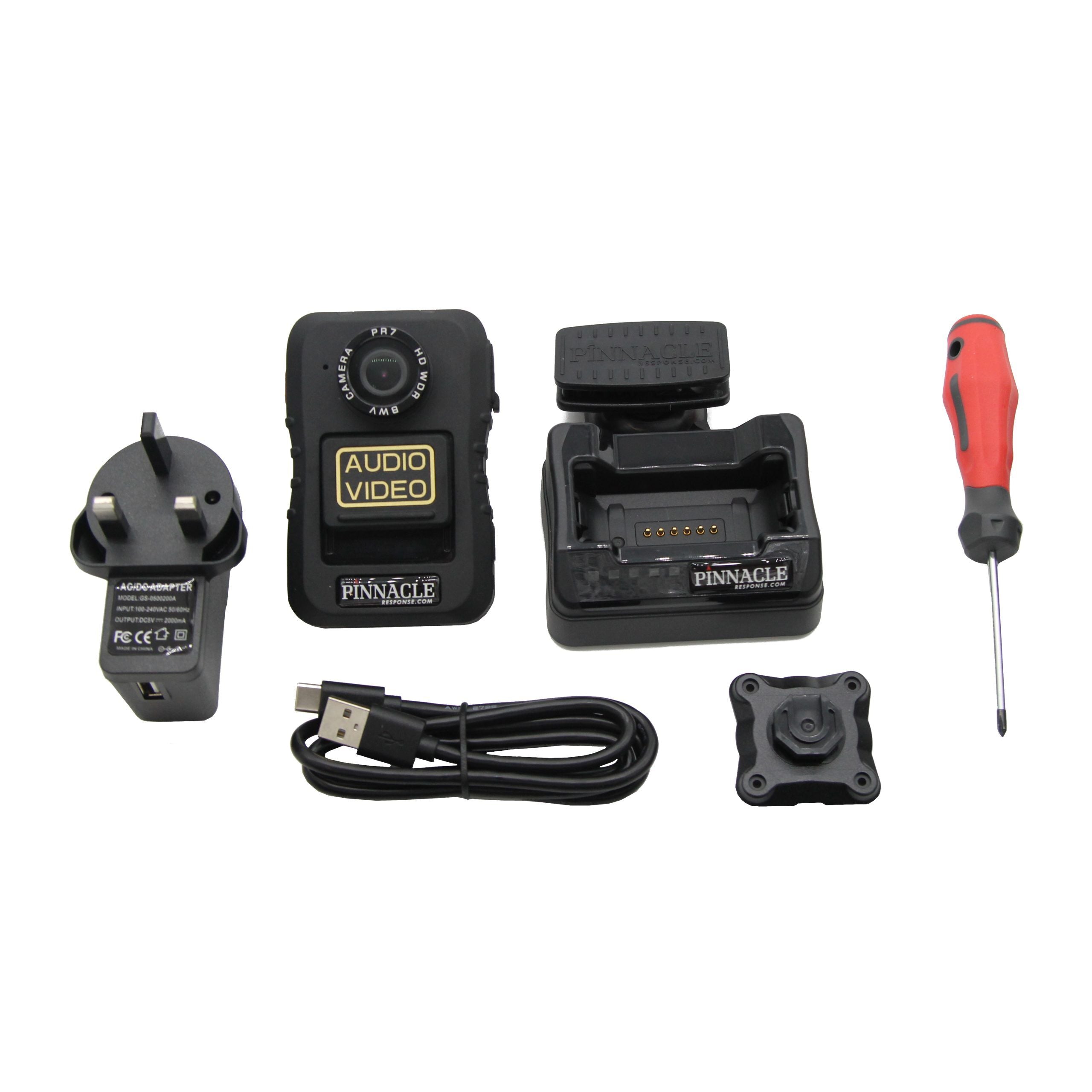

This Pinnacle body camera comes with a screw driver, 360° rotatable KlickFast stud, a fixed position KlickFast stud, a rotatable pressure clip, a cable, dock and charger.


UK Brand
For over a decade Pinnacle Body Cameras have been a well known UK brand for body worn video cameras. Headquartered in Northern Ireland, their cameras are made abroad and software developed in Britain.
