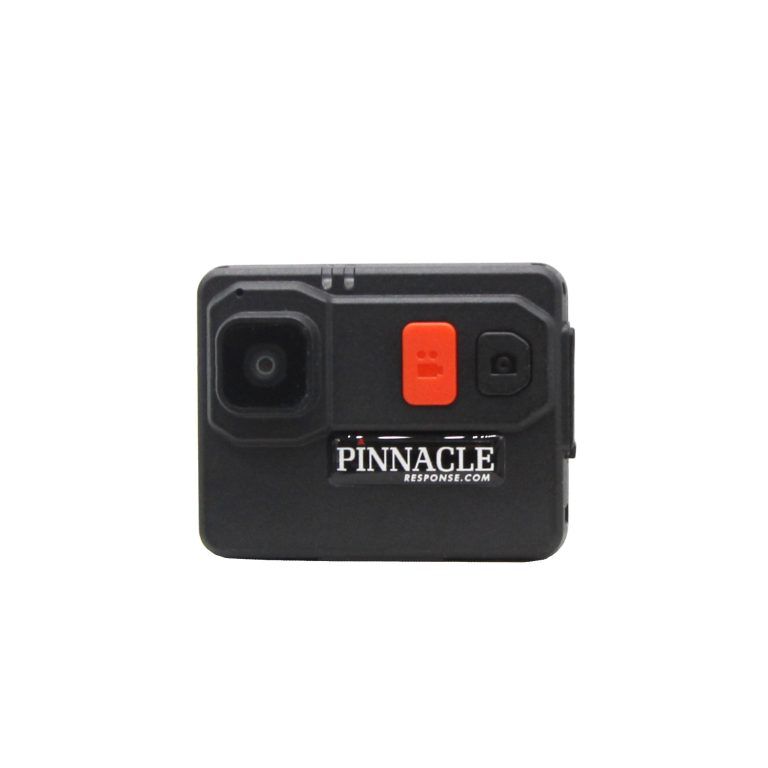

Pinnacle PR7 Mini Body Camera

• Small Mini Body Camera
• Lightweight at less than 100g
• 3 Versions Available
• 1080p Recording at 30 FPS
• Up to 45MP Snapshots
• Up to 10 Hours of Continuous Recording
• Full Charge within 3 Hours
• Multiple Mounting Options
• 100+ Hours of Standby
• Night-vision Capabilities
• Pre-Record
• IP65 Rating
• Shock Resistant to 1 Metre
• Tamper Resistant

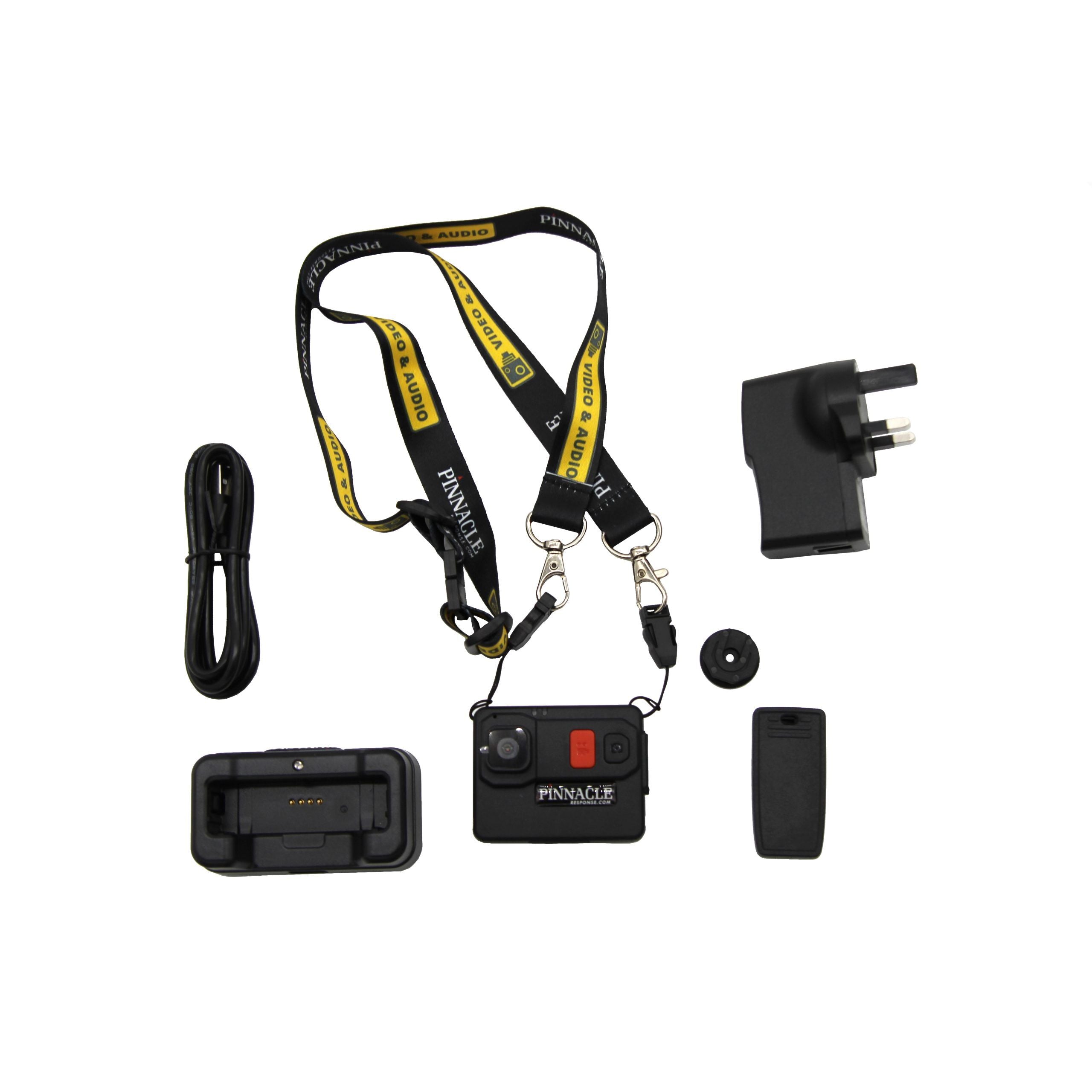

• Includes clips, dock, cable and charger
• Lanyard sold seperately

For the Cloud Based DEMS integrated version of this camera, please call us on 01722 444 806 and we will be able to better advise you on how to purchase this model.


Small Mini Body Camera
The Pinnacle PR7 Mini body camera is a lightweight small body camera that weighs around 80 grams and measures only 6.4 x 5.1 x 2.6cm. This means that is small enough to be worn around the neck or even kept in your pocket.


3 Versions Available
The Pinnacle PR7 Mini comes in plug and play, password locked and full encrypted versions. The plug & play (Lite) means that you can just plug in the camera and use it like a USB without password protection. This will make it suitable for use with a MAC. The password locked model (PPS) requires you to open the device’s storage using a password in the cam manager software. Finally the fully encrypted model (Full ENC) is integrated into the Pinnacle DEMS and requires cloud storage and a license. If you require the Fully Encrypted version, please call us on 01722 444 806.


Up to 1080p Recording with Watermark
This pinnacle body camera can record in several resolutions all the way up to 1080p. It records 30 frames per second and has a lens angle of 120°. The Pinnacle PR7 Mini also burns a watermark on to all footage which includes User ID/Device ID/ and Date/Time.


Up to 45M Still Frame Snapshots
The Pinnacle PR7 Mini can take both video and still frame snapshots. Next to the record button is the photo button which when pressed with capture photos in a configurable resolution up to 45MP. This is great from getting clear images of suspects.


Decent Battery Life for its size
The Pinnacle PR7 Mini Body Camera has a decent battery life for a camera its size. It is capable of recording continuously up to 10 hours depending on the selected resolution. It is also capable of delivering 100+ hours of standby depending on your chosen settings. It takes just over 3 hours to achieve a full charge.


Durable for a mini body camera
This pinnacle body camera has an ingress protection rating of IP65 which means that it is moderately water and dust resistant. It also has been drop tested to 1 metre and has a decent level of shock resistance.


30 Second Pre-Record
The Pinnacle PR7 Mini has a pre-record function which means that it can be set to be continuously recording but not saving any of the footage. It holds 30 second increments in its buffer until record is pressed at which point it attaches those 30 seconds to the subsequent clip. This allows the lead up to the button being pressed to be captured. This a battery heavy functionality.


Night-Vision Capabilities
This pinnacle body camera has the ability to record in infra-red which allows for the capture of footage in near dark environments down to 0.35 lux. The infra-red can be configured to automatically kick in at different sensitivity levels.


Multiple Mounting Options
The Pinnacle PR7 Mini is KlickFast compatible as it comes with a KlickFast stud. An optional extra lanyard is available (sold seperately) for hanging around the user’s neck and a crocodile clip for use with pockets and radio loops.


Tamper Resistant Design
The Pinnacle PR7 Mini is designed to by tamper resistant. It has no removeable components such as storage or battery, all of which is sealed within the casing of the device. This prevents authorised access or tampering of the device.


UK Brand
Pinnacle Response is a well known UK brand, headquartered in Northern Ireland. While their cameras are made in China, their software was designed and is operated out of the UK.
