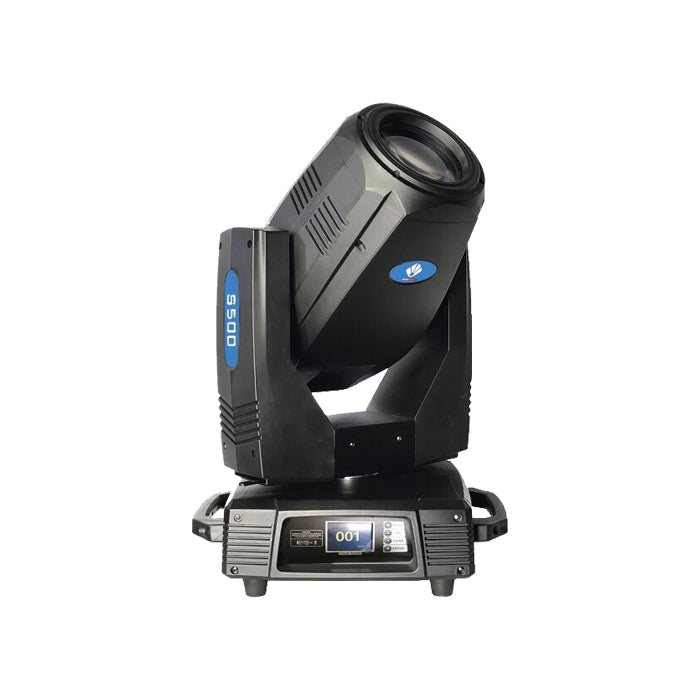

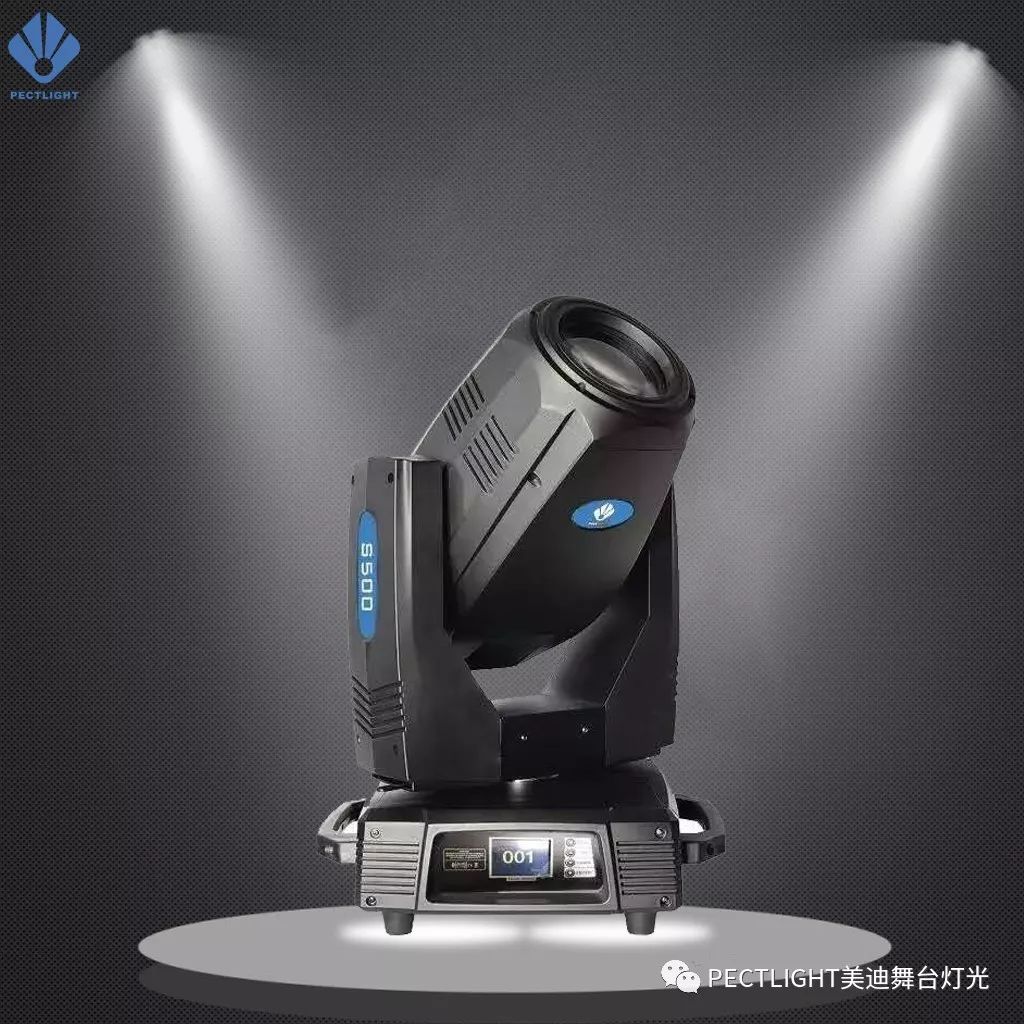

S500 350W 3-in-1 pattern moving head light

Voltage: 100v-240v/50-60Hz Power: 550W
Light source: original Philips 350 bulb, color temperature 8000K,
Light source life: the average life of 2000 hours
Operation mode: DMX512 mode, self-propelled mode, etc
Number of DMX channels: 20/24 channels (factory default 20CH)
Display: LED LCD touch screen + button control, Chinese and English mode, display board intelligent flip function.

S500

350W three-in-one pattern moving head light, original Philips 350 light source; The chassis is made of high-temperature alloy plastic, the optical use of short focal length spotlight system bulbs, coupled with the use of high-quality optical lens components, brilliant color palette, clear pattern, the output light effect is sharp and uniform. With Chinese/English language selection, the operation menu is intuitive and fast. 0-100% linear dimming, support mechanical strobe and adjustable speed strobe effect, thermal protection function. This moving head lamp is widely used in auditoriums, bars, gymnasiums and other large performance venues.

Technical parameters:

Voltage: 100v-240v/50-60Hz Power: 550W

Light source: original Philips 350 bulb, color temperature 8000K,

Light source life: the average life of 2000 hours

Operation mode: DMX512 mode, self-propelled mode, etc

Number of DMX channels: 20/24 channels (factory default 20CH)

Display: LED LCD touch screen + button control, Chinese and English mode, display board intelligent flip function.

Motor: XY axis motor, ultra-quiet, ultra-high speed three-phase motor

Color wheel: 13 colors + white light, half color effect

Solid chart disc: 14 fixed patterns + white light

Glass drawing: 9 replaceable rotating glass stereo patterns + white light

Prism: Any two kinds of prism effects and can be superimposed to combine prism dynamic effects, and can be rotated forward and reverse to switch effects

Optical Lens: A combination of high-precision glued optical lenses

Focus: Linear focus

Zoom: Linear zoom

Dimming: 0-100% linear adjustment

Beam angle: 2 degrees -38 degrees

Strobe: Dual-chip strobe (0.5-9 times/sec)

Protection class: IP20

Net Weight: 18KG Gross Weight: 20KG

Product size: 430 (L) ×305 (W) ×640 (H) mm Packing: 480*480*590mm
